Providing an Interface for Users to Select Advanced Features

Your application can provide an interface that lets users view and select advanced font styles, font features, and font variations. One approach is to create a typography dialog that has three panes--Styles, Features, and Variations. This would allow users control over all the advanced ATSUI typography that can be set using the MLTE function TXNSetTypeAttributes . Figure 3-6 shows a sample features dialog. The dialog lets users access a few of the ATSUI features that can be set using the MLTE function TXNSetTypeAttributes . Depending on your users' needs, your application could create a feature dialog that lists all ATSUI features that can be set, or you could limit user-selectable font features to those most important to your users.

Figure 3-6  A Features dialog

Responding to User Selected Events for Advanced Features

Your application then responds to user selections from the features dialog. Depending on how you set up the user interface, your application can respond on an item-by-item basis, or can apply, at the same time, all changes specified in the dialog.

Translating the User's Selections to Constants

Translating the user's selections into the appropriate font feature type and font feature selector constants requires some research as you write your application. You need to be familiar with Font Manager constants that specify font feature types and the ATSUI data types for ATSUI font features and font variations. These constants and data types are defined in the ATSUI reference documentation:

http://developer.apple.com/techpubs/macosx/carbon/text/ATSUI/atsui.html

For example, imagine your user has just made changes to the Ligatures section of the Features pane shown in Figure 3-6. Your application should represent the ligatures feature by using the kLigaturesType constant defined in the "Font Feature Type Constants" section of the Font Manager reference documentation:

http://developer.apple.com/techpubs/macosx/carbon/text/FontManager/fontmanager.html

To represent the specific ligature selections made by the user, you need constants that indicate that rare, common, and diphthong ligatures are enabled, while logo and rebus ligatures are disabled. So your application would use the following font feature type constants: kRareLigaturesOnSelector , kCommonLigaturesOnSelector , kDiphthongLigaturesOnSelector , kLogosOffSelector , and kRebusPicturesOffSelector .

You would take a similar approach for any font feature or font variation. First, look up the constant that represents the feature or variation category. Then look up the constants that represent the state of each feature or variation in that category.

Assigning Constants to the Type Attributes Data Structure

You can use the MLTE function TXNSetTypeAttributes to set a variety of features from simple to the most complex ATSUI features. The iAttributes parameter of the TXNSetTypeAttributes function is an array of TXNTypeAttributes structures that you use to indicate what features you want to set and the values to which the features should be set.

A TXNTypeAttributes structure has a TXNAttributeData union as one of its fields. The kind of attribute your application needs to set determines the data contained in the union. For ATSUI features, your application should supply atsuFeatures data, as defined by the TXNATSUIFeatures data structure. The TXNATSUIFeatures structure contains information about the number of features in the structure, along with pointers to the feature type and selector information (that is, whether a feature is enabled or not).

You can also use the MLTE TXNSetTypeAttributes function to set font variations data. In this case, your application would supply atsuVariations data in the TXNAttributeData union.

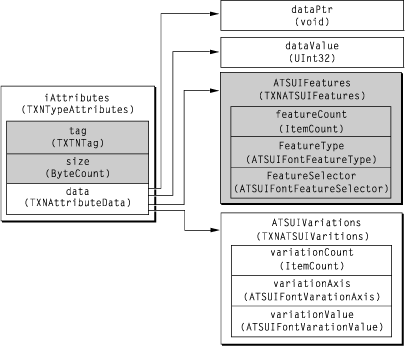

Figure 3-7 shows the TXNTypeAttributes structure and its fields. The shaded areas show the fields for which your application needs to provide data in order to change the ATSUI font features for a selection.

Figure 3-7  The fields for which your application needs to supply data in order to set ATSUI font features (shaded areas)

Once your application identifies the kind of data (feature or variation) it needs to set, then it needs to assign the appropriate values to the tag and size fields of the TXNTypeAttributes structure. The tag field determines the kind of data in the TXNAttributeData structure and the size field indicates the size of the attribute data. If your application needs to set ATSUI feature data, it would use the constant kTXNATSUIFontFeaturesAttribute for the tag field. It would use sizeof(TXNATSUIFeatures) for the size field. See "Font Run Attributes" for a description of the constants you can use for the tag field. See " Font Run Attribute Sizes" for a description of the constants you can use for the size field.

Finally, your application needs to supply ATSUI feature data. You need only take the constants you identified based on the user's selections (see Listing 3-16) and assign them to the appropriate fields of the TXNATSUIFeatures structure.

Listing 3-16	Assigning parameter values for diphthongs
TXNTypeAttributes       typeAttr[1];
TXNATSUIFeatures        myFeatures;
TXNObject               textObject;

myFeatures.featureCount     = numFeatures;
// Use a Font Manager constant to specify the feature type.
// In this case, you need to specify a ligatures type.
myFeatures.featureTypes     = kLigaturesType;
// Use the Font Manager constant to specify you want
// diphthong ligatures enabled.
myFeatures.featureSelectors = kDiphthongLigaturesOnSelector;
// Use an MLTE constant to assign a tag value.
// In this case, you need to specify an ATSUI font features attribute.
typeAttr[0].tag = kTXNATSUIFontFeaturesAttribute;
// Specify the data size is the size of the TXNATSUIFontFeatures structure.
typeAttr[0].size = sizeof (TXNATSUIFontFeatures);
// Set the value of the data field.
typeAttr[0].data.atsuFeatures   = (TXNATSUIFeatures *)&myFeatures;

Calling the MLTE Set Type Attributes Function

Once you have determined which constants to use and to which fields of the TXNTypeAttributes structure the constants should be assigned, the call to the MLTE function TXNSetTypeAttributes is straightforward. In addition to the TXNTypeAttributes structure, you need to pass the current text object and the starting and ending offsets of the current selection.

Listing 3-17	Calling the MLTE function to set type attributes
OSErr status = TXNSetTypeAttributes (textObject, 1, typeAttr,
                    kTXNUseCurrentSelection, kTXNUseCurrentSelection);

Updating the Display

Your application needs to update the display to reflect your user's selections. You need to check or uncheck items in the features dialog to reflect whether the item is now enabled or disabled.
