Inside Macintosh: Macintosh Human Interface Guidelines / Part 2 - The Interface Elements: Chapter 4 - Menus

The Menu Bar

The menu bar extends across the top of the screen and contains words and icons that serve as the title of each menu. It should be visible and always available to use. Nothing should ever appear on top of the menu bar or obscure it from view. The menu bar should always contain the standard menus--the Apple menu, the File menu, the Edit menu, the Help menu, and the Application menu. The Keyboard menu is an optional standard menu that appears when the user installs a script system other than the Roman Script System. The titles of the standard menus never change. (The titles of the Apple, Help, Keyboard, and Application menus are icons rather than words.) The standard menus are described in the section "Standard Macintosh Menus," beginning on page 77.

You can include as many menus in between these standard menus as are essential to your application and as fit on the smallest screen on which your application runs. It's a good idea to leave some room in the menu bar, both for localization and for menus added by third-party products such as utilities. Figure 4-2 shows the menu bar as it looks when the Finder is the current application, and points out the space you have for application-specific menus.

Figure 4-2 A menu bar

The width of the menu bar depends on the screen size of the user's monitor. Figure 4-3 shows menu bars of three different widths and how much space is used by the Finder's menu titles on each screen.

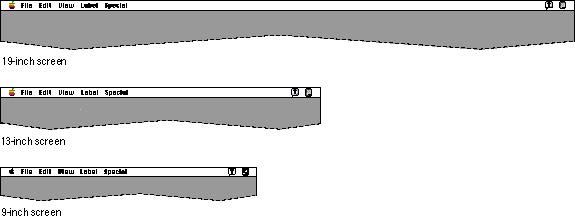

Figure 4-3 Three menu bars

Your application's menu titles should remain constant. This constancy adds to the user's sense of perceived stability of the interface and helps users identify applications when they switch from one to another. For a menu title, use a word that reflects the category of the commands in each menu. For example, the Edit menu contains commands that change, or "edit," a document's contents. When you choose menu titles, think about the word lengths in different languages so that your menu titles will fit in the menu bar even in the longest case when you localize them. Figure 4-4 shows the Finder menu bar in six different languages. You can see the variation in the length of
simple menu titles. See Guide to Macintosh Software Localization for lists of standard menu titles in different locales around the world.

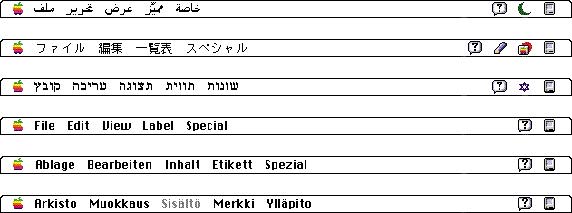

Figure 4-4 The Finder menu bar in six languages

Menu titles always remain visible. If all the operations in a given menu are currently unavailable (that is, the user can't choose them), dim the title by drawing it in gray. The user can still open the menu and see the names of the operations when a menu is dimmed. Figure 4-5 shows a menu bar with an unavailable menu.

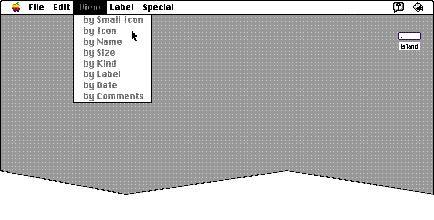

Figure 4-5 An unavailable menu

The menu bar should be visible at all times to provide a visual anchor
for people and to provide access to menus. If your application can display screen-sized presentations, you may implement a feature where the
user displays the presentation without the menu bar being shown. If you
do decide to implement this feature, you must provide a way, such as a keyboard equivalent, for the user to make the menu bar reappear and this method must be clearly visible on the screen and accessible to users when the menu bar isn't. For instance, you could include a button labeled "Menu Bar" somewhere on the screen so that the user only has to click it to get to
the menu bar.
