Inside Macintosh: Mac OS Runtime Architectures /

Chapter 9 - CFM-68K Application and Shared Library Structure / CFM-68K Application Structure

The Jump Table

Figure 9-2 shows the structure of a CFM-68K runtime jump table. This jump table is similar to the classic 68K far model jump table as shown in Figure 10-10 (page 10-23).

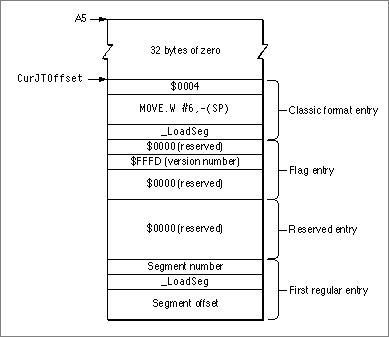

Figure 9-2 CFM-68K runtime jump table structure
