Polylines
A polyline is a collection of n lines defined by the n+1 points that define the endpoints of each line segment. The entire polyline can have a set of attributes, and each line segment in the polyline also can have a set of attributes. (In addition, each vertex can have a set of attributes.) A polyline is defined by the TQ3PolyLineData data type. See "Creating and Editing Polylines," beginning on page 4-68 for a description of the routines you can use to create and edit polylines. Figure 4-11 shows a polyline.
- IMPORTANT
- A polyline is not closed. The last point should not be connected to the first.

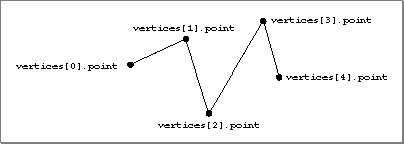

Figure 4-11 A polyline
typedef struct TQ3PolyLineData {
unsigned long numVertices;
TQ3Vertex3D *vertices;
TQ3AttributeSet *segmentAttributeSet;
TQ3AttributeSet polyLineAttributeSet;
} TQ3PolyLineData;
Field Description
numVertices
- The number of vertices in the polyline. The value of this field must be at least 2.
vertices
- A pointer to an array of vertices which define the polyline.
segmentAttributeSet
- A pointer to an array of segment attribute sets. If no segments in the polyline are to have attributes, this field should contain the value
NULL. If any of the segments have attributes, this field should contain a pointer to an array (containing numVertices - 1 elements) of attributes sets; the array element for segments with no attributes should be set to NULL.
polyLineAttributeSet
- A set of attributes for the polyline. The value in this field is
NULL if no polyline attributes are defined.
